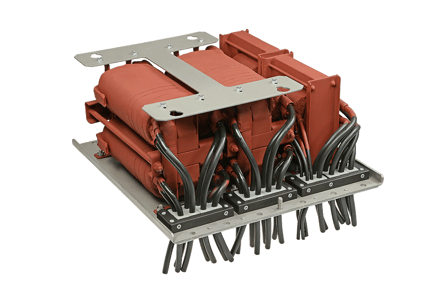

Combination of four air-cooled medium-frequency transformers in one assembly. Suitable for installation in dirty areas (PD4)
Example:
- Power: 2 x 100 kVA / 2 x 20 kVA
- Primary voltage: 600 V
- Secondary voltage: 750 V / 150 V
- Frequency: 18 kHz
- Weight: 65 kg
Medium-frequency transformer with uncut nanocrystalline core technology: significant noise reduction, low loss and heat dissipation
Example:
- Power: 50 kVA
- Primary voltage: 500 V
- Secondary voltage: 750 V
- Frequency: 2,5 kHz square-wave voltage
- Weight: 30 kg

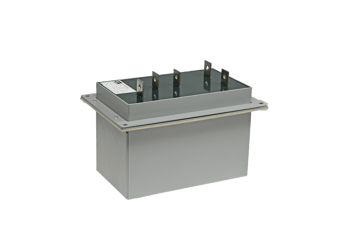

Encapsulated medium-frequency transformer for installation in housing openings or on a heat sink
Example:
- Power: 40 kVA
- Primary voltage: 500 V
- Secondary voltage: 600 V
- Frequency: 8 kHz
- Weight: 20 kg
Ferrite core input reactor with cooling channels for natural air-cooling
Example:
- Inductance: 230 µH
- DC current: 70 A
- AC current: 110 A
- Main current harmonic frequency: 5 kHz

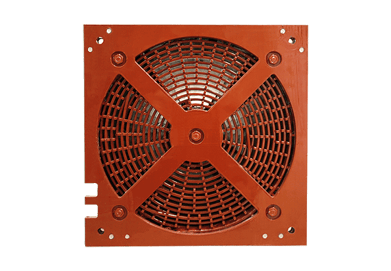

Air-core reactor for minimizing the effects of voltage drops and for limiting peak currents. Prepared for accelerated air-cooling with 3 m/s
Example:
- Inductance: 2,3 mH
- RMS current: 300 A
- Peak current: 210 A (discontinuous operation)
- Frequency: 30 kHz
