D31A3100
- Max Switching Power=10VA
- Features=1A/5v
- The application is a DIP relay
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominal bobine=5VDC
- Resistance bobine at 20°C=500Ω Learn more
D31A3110
- Max Switching Power=10VA
- Features=1A/5v/Diode
- The application is a DIP relay
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominal bobine=5VDC
- Resistance bobine at 20°C=500Ω Learn more
D71A5100
- Max Switching Power=10VA
- Features=1A/12v
- The application is a DIP relay
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominal bobine=12VDC
- Resistance bobine at 20°C=530Ω Learn more
D41A0230
- Max Switching Power=10VA
- Features=1A/5v/SIP
- Housing Application is SIP relay.
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominale bobine=5VDC
- Résistance bobine à 20°C=500Ω Learn more
D41A5100L
- Max Switching Power=10VA
- Features=1A/12v/SIP Housing
- Application is SIP relay.
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominale bobine=12VDC
- Résistance bobine à 20°C=1000Ω Learn more

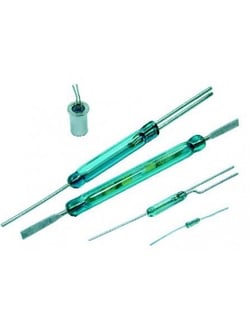

AC032025
- Max Switching Power=12VA
- Features=For. A-10mm-10w/100Vdc/0, 5A
- The application is Switches.
- Contact Type=1NO
- Max Switching Voltage=100VDC
- Max Switching Current (A)=0,5
- Tension nominale bobine=10 mm glass length
- Résistance bobine à 20°C=20-25ATf Learn more

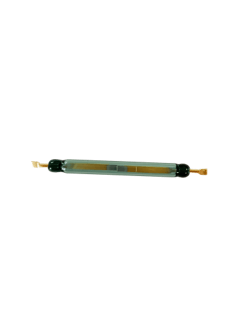

AD288590
- Max Switching Power=120VA
- Features=For.A-50mm-120W/250Vac/3A
- The application is Switches.
- Contact Type=1NO
- Max Switching Voltage=250VDC
- Max Switching Current (A)=3
- Tension nominale bobine=79 mm glass length
- Résistance bobine à 20°C=85-90ATf Learn more
CD30060100
- Max Switching Power=100VA
- Features=For.C-35mm-100w/500Vac/cc/3A
- The application is Switches.
- Contact Type=changeover
- Max Switching Voltage=500VDC
- Max Switching Current (A)=3
- Tension nominale bobine=34.3 mm glass length
- Résistance bobine à 20°C=60-100ATf Learn more

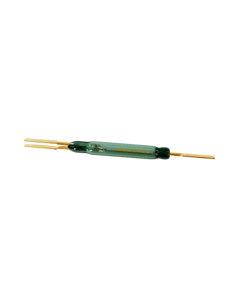

CS265560
- Max Switching Power=60W
- Features=For.C-35mm-60w/400Vac/cc/1A
- The application is Switches.
- Contact Type=changeover
- Max Switching Voltage=400VDC
- Max Switching Current (A)=1
- Tension nominale bobine=34.3 mm glass length
- Résistance bobine à 20°C=55-60ATf Learn more
S800
- Dimensions 50 x 36 x 12 mm (L x H x W)
- Changeover contact with a solid contact bridge.
- Continuous thermal current up to 10 A; disconnecting medium to high power ranges.
- Shock resistance 30 g, vibration resistance 80 g. Learn more
S804
- Dimensions 36 x 30 x 22 mm (L x H x W)
- Changeover contact with a solid contact bridge.
- Continuous thermal current up to 10 A; disconnecting medium to high power ranges.
- Shock resistance 30 g, vibration resistance 80 g. Learn more
S820
-
Dimensions 50 x 55 x 12 mm (L x H x W)
- Changeover contact with two galvanically isolated contact bridges.
- Continuous thermal current up to 20 A; disconnecting high power ranges.
- Shock resistance 60 g, vibration resistance 50 g. Learn more
S947
- Robust against extreme temperatures, chemicals, and shocks.
- Break contacts with the positive opening.
- Changeover contact with two galvanically isolated contact bridges..
- Reliable switching of low currents.
- Self-cleaning double contacts. Learn more

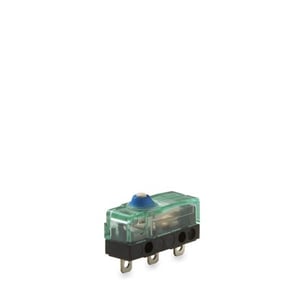

S880
- Dimensions 20 x 9.3 x 6.6 mm (L x H x W)
- Changeover contact in a miniature design.
- Reliable switching of low currents.
- Self-cleaning contacts.
- Shock resistance 50 g, vibration resistance 50 g. Learn more
