The revolution in the field of cable entry! Fast. Safe.
-
The KDSI-SR cable entry system offers maximum flexibility and time savings regarding cable management on control cabinets, enclosures, and machines, as well as secure sealing and strain relief for assembled and non-assembled cables - with and without connectors.
- Sealed according to IP66.
- The modular system ensures quick and easy assembly in three steps. A reliable seal and absolute secure fit are also provided by the slitted, tapered seals with a wave-cut profile, which, after the cables are routed through the cable entry, are placed around the cables and then pressed into the round cable entry.
- The separable locknuts that are mounted on the inside of the locking elements ensure safe and secure attachment.
- The new KDS-FP flange plate provides manufacturers of machines with a very cost-effective, convenient feed-through solution.
- It can be used to adapt housings and switchgear cabinets to fit your updated requirements at any time, and can also considerably simplify your warehousing.
- Fast. Safe.
- Turning cables inside out! The KDSClick cable entry system is a cable management solution for switchgear cabinets, housings, and machines that features secure seals and strain relief for pre-assembled and non-assembled cables – with or without connectors. KDSClick saves you time and provides you with maximum versatility.
- The KDS-FB cable entry system for flat cables provides you with outstanding versatility and saves you time while managing cables, especially for industrial trucks, crane systems, and elevator applications.
- The "fish skin" on the seals mechanically surrounds the inserted flat cable; they ensure optimum tolerance compensation and IP66 protection.
When feeding in non-assembled cables, lines and pneumatic hoses (without connected plugs), CONTA-CLIP has a wide range of products that offer alternatives to cable glands or single-membrane feed-throughs.
- In case of maintenance or retrofitting with assembled cable harnesses, cables with diameters from 2 to 35 mm can be quickly and safely inserted into the switchgear cabinets or housings and sealed according to IP66.
- This separable system ensures quick and simple installation. The slitted seal has a wave-cut profile that ensures a reliable seal and a totally secure attachment.
- The seal is first placed around the cable and then inserted in one of the two halves of the cable gland.

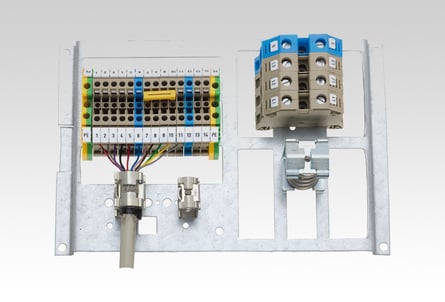

- In the field of industrial process engineering, a high degree of interference immunity is required of electrical equipment. This is a critical factor affecting the availability of industrial measurement and control systems.
- When constructing low-interference systems, both the cable shielding and the shielded ground are very important. The juncture where the cable shielding connects to the housing ground is a critical point. The connection should be low ohm and should also feature minimal inductive resistance.
- You should be certain that this connection can be established in a practical, simple, and quick manner. CONTA-CLIP's SAB/SSAB shielding systems are one of the most comprehensive product portfolios on the market. They offer a perfect solution for any application.
