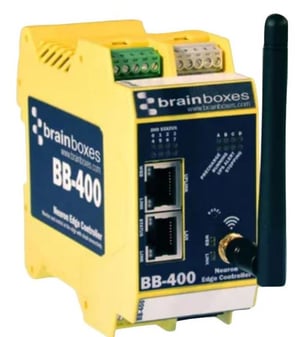

| Edge Processing |
Main Processor |
Raspberry Pi Compute Module 3+, 1.2GHz quad-core Broadcom BCM2837B0 processor |
| |
RAM |
1 Gbyte LPDDR2 RAM |
| |
Storage |
32 Gbytes eMMC Flash |
| |
Integrated Connectivity |
Wifi, Bluetooth, 2 Independent Ethernet, 8 Digital IO, RS232/422/485 Serial, NFC |
| |
Cloud Connectivity |
Program your own, out of the box coming soon |
| |
Software |
Secure Web Administration, Docker, Sample Applications, Fully open and customizable platform |
| |
Real-Time Clock |
Yes; with battery backup |
| IO Channels |
IO processor |
Arduino microcontroller processing real-time signals (reprogrammable) |
| |
IO Protocols |
MQTT, OPC-UA, REST, Modbus, WebSockets, ASCII TCP, Unix Domain Socket |
| |
Description |
8 Digital Inputs and 8 Digital Outputs |
| |
Digital Inputs |
Up to 8 |
| |
Digital Outputs |
Up to 8 |
| |
Power On Values |
N/A |
| Digital IO |
Input Logic Level 0 |
0.0V to + 1.0V |
| |
Input Logic Level 1 |
+2.0V to +30V |
| |
Inputs NPN/PNP |
Jumper Selectable |
| |
Input Latches |
Triggered by user-programmable positive or negative edges, stays true until acknowledged |
| |
Input Counter |
User programmable- counts positive or negative transitions up to 200Hz |
| |
Digital Output Type |
Open drain transistor protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min |
| |
Maximum Output Load Voltage |
30 VDC |
| |
Maximum Output Current Sink |
0.85A per channel, Max 4 Amp Per Device |
| Serial Port |
Ports |
1 |
| |
Protocol |
Selectable RS232/422/485 |
| |
Connector |
Removable Screw terminal block connector - 3.5 mm pitch |
| |
Tx FIFO Size |
64 |
| |
Rx FIFO Size |
64 |
| |
Operating Distance |
RS422/485 Standard (4000 ft : 1200 metres) / EIA - RS232 Standard |
| Serial Port Settings |
Max Baud Rate |
921,600 |
| |
Data Bits |
5,6,7 or 8 |
| |
Parity |
Odd, Even, None |
| |
Stop Bits |
1, 1.5 or 2 |
| |
Flow Control |
RTS/CTS, XON/XOFF |
| |
Tx/Rx Modes |
Point to Point (RS232), Full Duplex, Half Duplex Autogating, Hardware Autogating, TxD always/ RTS true enabled, RxD always enabled, RxD RTS true disabled, CTS forced true (RS422/485) |
| Network |
Number of Ports |
2: 1 Uplink and 1 LAN, individually configurable |
| |
Wi-Fi |
Yes : station and access point mode |
| |
Wi-Fi Standard |
802.11 b/g/n |
| |
Network Port Type |
RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) |
| |
Protection |
1500V Magnetic Isolation between ports and network |
| Bluetooth Settings |
Bluetooth Qualification |
v4.0 (2.1 + EDR, LE) |
| |
Bluetooth Class |
Class 1 |
| |
Radio Frequency |
2.45 GHz |
| NFC |
NFC |
Coming soon via software update |
| |
Default Config |
By Default sends Network Settings to a connecting device |
| Software |
Operating System |
Raspbian Lite - based on Debian |
| |
Security |
Latest SSH and TLS security protocols |
| |
Administration |
Secure Web administration with user-definable roles |
| |
Docker Support |
Preinstalled with the web admin interface, Customised Containers available for NodeRed |
| |
Configurability |
Full access to secure Linux command line, open system, fully configurable, custom OS can be flashed into memory if required |
| Power |
Power Input |
5V - 30V DC Redundant DC Dual Power Inputs, reverse polarity protected |
| |
Max Input |
35 Volts |
| |
Uninterrupted Power Supply |
Yes; Integrated UPS |
| |
UPS Typical shutdown window |
40 seconds mean time til shutdown under a typical workload |
| |
UPS Lifetime |
Over 1/2 Million Charge/Discharge Cycles |
| General |
Operating Temperature Range |
-25 °C to +80 °C / -13 °F to +176 °F |
| |
Industrial Standard |
Yes |
| |
Storage Temperature |
-40 °C to +85 °C / -40 °F to +185 °F |
| |
Power Consumption |
4 Watts Typical, 15W Max |
| |
Product Weight |
0.248 kg |
| |
Product Dimensions |
120(l) x 99(w) x 45(h) mm |
| |
Packaged Weight |
0.334 kg |
| |
Packaged Dimensions |
160(l) x 135(w) x 49(h) mm |
| |
GTIN (barcode) |
837324004441 |
| Operating System Compatibility |
Operating Systems |
- Communicate with the Device over TCP from any OS
- Suitable for any device with a Web Browser
- Raspberry Pi
- Linux
|
| Interface |
Ethernet |
Ethernet Interface takes advantage of a company's pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world. |
