SW-015: 5 Port Unmanaged Gigabit Ethernet Switch Wall Mountable
| Operating temperature | -10 °C to +60 °C / 14 °F to +140 °F |
| Storage Temperature | -10 °C to +70 °C / +14 °F to +158 °F |
| Form Factor | Wall Mounted |
| Power Consumption | 3.6W Max: 720mA@+5VDC/120mA@+30VDC |
| Product Weight | 0.129 kg, 4.55 ounces |
| Product Dimensions | 110x100x30 mm, 4.3x3.9x1.2 inches |
| Packaged Weight | 0.209 kg, 7.37 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

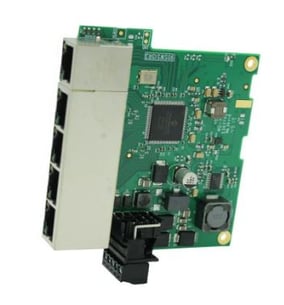

SW-114: Embedded Industrial 4 Port Gigabit Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 3.6W Max: 720mA@+5VDC/120mA@+30VDC |
| Product Weight | 0.059 kg, 2.08 ounces |
| Product Dimensions | 95x82x15 mm, 3.7x3.2x0.5 inches |
| Packaged Weight | 0.144 kg, 5.08 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-115: Embedded Industrial 5 Port Gigabit Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 3.6W Max: 720mA@+5VDC/120mA@+30VDC |
| Product Weight | 0.076 kg, 2.68 ounces |
| Product Dimensions | 95x90x20 mm, 3.7x3.5x0.8 inches |
| Packaged Weight | 0.155 kg, 5.47 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

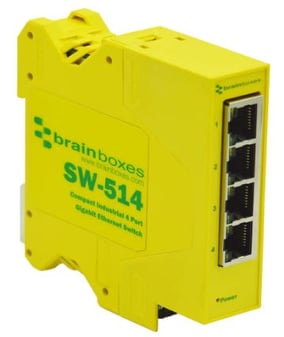

SW-514: Compact Industrial 4 Port Gigabit Ethernet Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 3.6W Max: 720mA@+5VDC/120mA@+30VDC |
| Product Weight | 0.112 kg, 3.95 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.191 kg, 6.74 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

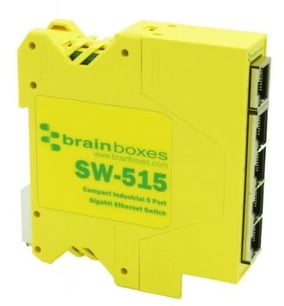

SW-515: Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 3.6W Max: 720mA@+5VDC/120mA@+30VDC |
| Product Weight | 0.112 kg, 3.95 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.191 kg, 6.74 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

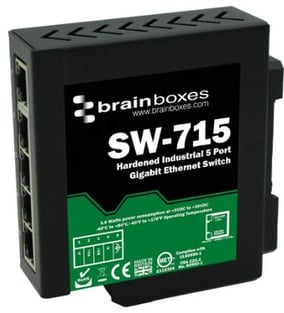

SW-715: Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Hardened Din rail mounted |
| Power Consumption | 3.6W Max: 720mA@+5VDC/ 120mA@+30VDC |
| Product Weight | 0.274 kg, 9.67 ounces |
| Product Dimensions | 99x94x29 mm, 3.9x3.7x1.1 inches |
| Packaged Weight | 0.353 kg, 12.45 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
