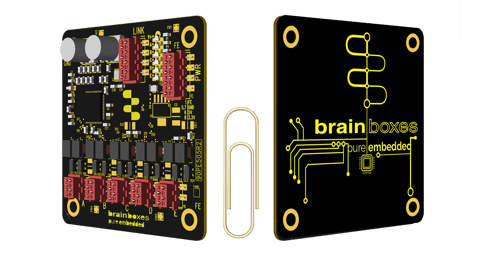

PE-505 – Pure Embedded 10/100 5 Port Ethernet Switch
- 3D CAD files and PCB footprints
- Mega compact form – smaller than a standard business card (55x55x10mm)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- Stability of design guaranteed for min. 10 years
- LEDs visible in all orientations – option to route through fiber
SW-104: Industrial Embeddable 4 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.1 Watts Max: 220 mA@+5VDC / 36mA@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.082 kg, 2.89 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

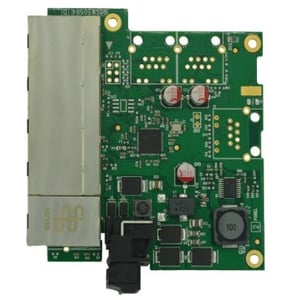

SW-105: Industrial Embeddable 5 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.35 Watts Max: 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.068 kg, 2.39 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.088 kg, 3.10 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-108: Industrial Embeddable 8 Port Ethernet Switch
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Embedded |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.110 kg, 3.88 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-005: 5 Port Unmanaged Ethernet Switch Wall Mountable
| Operating temperature | -10 °C to +60 °C / 14 °F to +140 °F |
| Storage Temperature | -10 °C to +70 °C / +14 °F to +158 °F |
| Form Factor | Wall Mounted |
| Power Consumption | 1.1 Watts Max: 220 mAmps@+5VDC/36mAmps@+30VDC |
| Product Weight | 0.134 kg, 4.73 ounces |
| Product Dimensions | 107x102x28 mm, 4.2x4.0x1.1 inches |
| Packaged Weight | 0.212 kg, 7.48 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

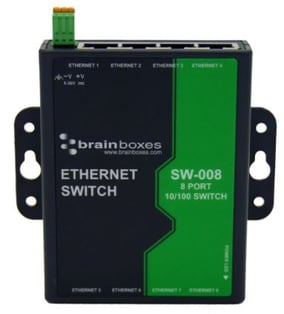

SW-008: 8 Port Unmanaged Ethernet Switch Wall Mountable
| Operating temperature | -10 °C to +60 °C / 14 °F to +140 °F |
| Storage Temperature | -10 °C to +70 °C / +14 °F to +158 °F |
| Form Factor | Wall Mounted |
| Power Consumption | 1.1 Watts Max: 220 mAmps@+5VDC/36mAmps@+30VDC |
| Product Weight | 0.142 kg, 5.01 ounces |
| Product Dimensions | 110x100x30 mm, 4.3x3.9x1.2 inches |
| Packaged Weight | 0.226 kg, 7.97 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-504: Industrial Ethernet 4 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.1 Watts Max: 220 mA@+5VDC / 36mA@+30VDC |
| Product Weight | 0.125 kg, 4.41 ounces |
| Product Dimensions | 118x100x23 mm, 4.6x3.9x0.9 inches |
| Packaged Weight | 0.199 kg, 7.02 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |

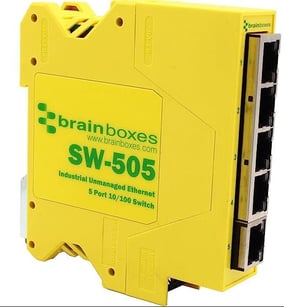

SW-505: Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.35 Watts Max: 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.115 kg, 4.06 ounces |
| Product Dimensions | 99x94x23 mm, 3.9x3.7x0.9 inches |
| Packaged Weight | 0.199 kg, 7.02 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-508: Industrial Ethernet 8 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Din rail mounted |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.160 kg, 5.64 ounces |
| Product Dimensions | 115x99x45 mm, 4.5x3.9x1.8 inches |
| Packaged Weight | 0.244 kg, 8.61 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-705: Industrial Hardened Ethernet 5 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Hardened Din rail mounted |
| Power Consumption | 1.35 Watts Max : 260 mAmps@+5VDC/45mAmps@+30VDC |
| Product Weight | 0.270 kg, 9.52 ounces |
| Product Dimensions | 99x95x29 mm, 3.9x3.7x1.1 inches |
| Packaged Weight | 0.338 kg, 11.92 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
SW-708:Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
| Operating temperature | -40 °C to +80 °C / -40 °F to +176 °F |
| Storage Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
| Form Factor | Hardened Din rail mounted |
| Power Consumption | 1.5 Watts Max: 300 mAmps@+5VDC/50mAmps@+30VDC |
| Product Weight | 0.393 kg, 13.86 ounces |
| Product Dimensions | 120x100x40 mm, 4.7x3.9x1.6 inches |
| Packaged Weight | 0.443 kg, 15.63 ounces |
| Packaged Dimensions | 160x135x49 mm, 6.3x5.3x1.9 inches |
