Premium PSU’s CBS-10K is a single-output DC/DC converter that provides a peak power of up to 10kW during 40 seconds with multiple input-output voltage combinations, which makes it the perfect fit for a wide range of applications that require high power conversion in a compact and light design.
The unit allows:
-
High input-output isolation (5000 Vrms)
-
Up to 10kW during 40s
-
6kW average
-
500Vdc output (up to 700V under request)
-
24Vdc, 48Vdc, 72Vdc, 110Vdc input voltage models
-
Redundant configuration
-
Remote control via RS232
-
Optional CAN BUS
-
High power density
-
Alarm by isolated relay contacts
-
Up to 95% efficiency
-
200.000 h MTBF (according to IEC61709, SN29500 @40°C)
The new CRS-2000 is a 2000W DC/DC converter presented in a compact and robust design with multiple input-output voltage combinations, which makes it the perfect fit for a wide range of applications that require high power conversion. This converter series uses SiC Technology, which gives the device a high power density.
The unit allows:
-
2000W DC/DC converter
-
High input-output isolation (3kV)
-
24Vin, 36Vin, 48Vin, 72Vin, 110Vin
-
Adjustable output voltage
-
Remote sensing
-
Protection against short circuits and overloads
-
Input & output OK LEDs
-
Output failure alarm
-
Up to 93% efficiency
-
MTBF: 250.000 hours
-
Oring FET
-
Hold-up time
-
Active reverse polarity protection
-
Active inrush current limiter
The new CLS-120 DC/DC converter series is the perfect fit for industrial and railway applications that require operating with battery voltages between 14.4 and 154Vdc. This “all-in-one” solution is an ideal option to make the purchasing and stocking management process easier.
Main features:
-
High input-output isolation
-
Wide input voltage range: 14,4…154Vin
-
Output voltage: 12V, 24V, and 48V
-
Available options: embedded Oring & remote sensing
-
Operating temperature up to 85ºC (OT6 with derating)
-
Designed according to EN50155 (Class S2: holp-up time 10ms)
-
EN45545-2 approved
-
Fanless – convection cooled
-
Conformal coating
-
Easy install: wall mount, DIN rail, rack mount
- The CVS-280 is a 280W DC/DC (400W peak) low battery voltage starter that allows getting power straight from the catenary or line contact to start the vehicle. It withstands 4.5kV overvoltage peaks and has been designed to comply with railway standards.
- The CVS-280 has a robust and compact design with anodized aluminum housing, the cooling is by natural convection and the operating temperature can reach up to 85ºC.
- The CRS-1000 is a reliable 1000W DC/DC converter series with a compact and robust design. It delivers 1000W at 24, 48, 72, and 110V and offers a great variety of input-output combinations.
- This converter series also allows for parallel connection.
- The CRS-1000 has been designed with mounting brackets to be installed on a chassis and exhibits a closed anodized aluminum housing.
- All DC/DC converters from the CTS-240 series meet the requirements of EN50155 for electronic equipment used in rolling applications and are approved for the fire and smoke EN45545-2.
- This converter series has been designed to fit a wide variety of railway applications and track record in numerous projects over the years, offering a 5-year warranty.
- All models have adjustable output voltage and generate up to 280W. The CTS-240 converter series offers a wide variety of input-output combinations and allows parallel connection.
The CTS-120 DC/DC converter series offer up to 140W power and comply with the EN50155 standard, suitable for the industrial and railway industry. All models have remote inhibit and alarm options available.
KEY FEATURES:
-
Designed according to EN50155
-
Fire and smoke: EN45545-2 approved
-
High input-output isolation
-
Standard size Eurocard 3U
-
Input voltage OK LED
-
Output voltage presence LED
-
Remote inhibit
-
Option: remote sensing or alarm
-
Efficiency up to 89%

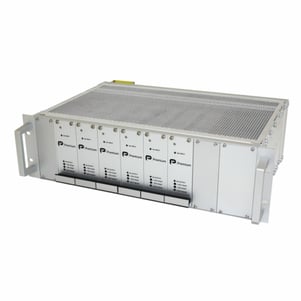

The CKR-2000 series is designed for applications where a high degree of reliability is required. It consists of modular DC/DC converters that allow a set of up to 8 modules of 240W or 280W installed in a subrack of 19″. It can be configured according to the needs of outputs, power, and level of redundancy.
KEY FEATURES:
- Modules series CRS-240 / CTS-240
- Module hot swap
- Input and/or output redundancy
- Oring by diodes
- High input-output isolation
- Module Input voltage OK LED
- Module output voltage presence LED
- Module output voltage test point
- Output failure alarm by relay contacts
- Railway version EN50155
The CTS-60 series consists of up to 60W DC/DC converters of easy installation. They have been designed to comply with the 50155 railway standard and all models have remote sensing and operate in environments up to 70ºC.
KEY FEATURES:
- Designed according to EN50155
- Fire and smoke: EN45545-2 approved
- Switching frequency: 140KHz
- High input-output isolation
- Adjustable output voltage
- Remote sensing
- Output voltage presence LED
- Efficiency up to 85%

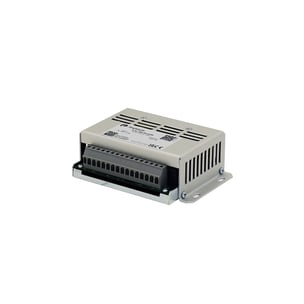

The CRS-60 DC/DC converters offer up to 60W and adjustable output voltage. All models are compact and have been designed for all types of industrial applications.
KEY FEATURES:
- Switching frequency: 140KHz
- High input-output isolation
- Adjustable output voltage
- Remote sensing
- Output voltage presence LED
- Efficiency up to 85%
