C360 – AC and bi-directional DC contactors up to 1,500 volts for railway applications
Key features:
- Compact dimensions – high-rated insulation voltage Ui up to 1,500 volts
- Making capacity Icm up to 2,500 A, bistable design available.
- High conventional thermal current Ith up to 500 A.
- High short-time current-carrying capacity Icw up to 3,000 A (1 s).
- Full bidirectionality – reliable disconnection of high performances.
- Auxiliary switch with mirror contact function

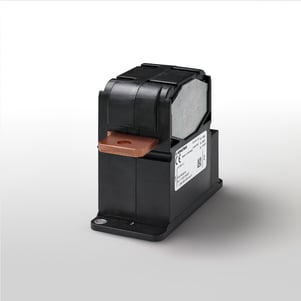

C300 – Single-pole bi-directional DC contactors up to 1,500 volts
Key features:
- Compact dimensions – high rated insulation voltage Ui up to 1,500 volts.
- High thermal continuous current Ith of up to 500 amps.
- Making capacity Icm up to 6,000 amps.
- Short-time current-carrying capacity Icw up to 6,000 amps.
- Full bidirectionality – reliable disconnection of high performances.
- Auxiliary switch with mirror contact function
C310 – AC and bidirectional DC contactors up to 1,500 V
Key features:
- Compact dimensions – high-rated insulation voltage Ui up to 1,500 volts.
- Making capacity Icm up to 2,500 A, bistable design available.
- High conventional thermal current Ith up to 500 A.
- Short-time current-carrying capacity Icw up to 3,000 A (1 s).
- Full bidirectionality – a reliable disconnection of high performances.
- Use in energy technology and electromobility.
- Auxiliary switch with mirror contact function
UIC – Inter-car jumpers to UIC 558 VE
-
Adjustable output frequency
-
Adjustable output voltage
-
Input voltage according to EN50163:2006 & EN50124-2:2017
-
High input-output isolation 5400Vrms
-
Remote off opto-coupled
-
Alarm by isolated relay contacts
-
Configurable input: Reverse or Mid power
-
Remote control via RS232
-
CAN BUS
-
Railway applications, according to EN61287-1
-
Fire and smoke: EN45545-2
UIC-IT – Cost effective, fast and reliable data communication
- Connectors for data communication in rail vehicles qualified for GbE up to Cat 7.
- Gigabit Ethernet module: 360° shielded module with eight terminals for 4 data pairs for the transmission of 10 GbE in a permanent link with Cat 7-compliant data cables
- Signal contacts: 16 signal contacts for additional control tasks as required, for example, by DB AG for salvage and clearing operations.
B – Connectors for rail vehicle
- Rugged mechanical and electrical design
- Universally usable connectors for power and control circuits
- Easy replacement of components
- Easy assembly resulting in short assembly times
- Mechanically locking connector
- Integrated interlocking circuit to protect personnel from contact with dangerous voltages
ZH – Rugged inter-car jumpers to UIC 552
- Tractive units and railway vehicles: Jumpers for providing electrical connections between the carriages of a train equipped with a train line.
- Rugged, durable aluminum die-cast housing
- Termination: High-quality screw machined contact, continuous low contact resistance, Crimp connection, wire gauge 185 mm², Earthing: sheathed cable, wire gauge 25 mm², connected to plug housing
S800 snap-action switch – Microswitch for medium and high power ranges
- Changeover contact with a solid contact bridge.
- Continuous thermal current up to 10 A; disconnecting medium to high power ranges.
- Break contacts with a positive opening.
- Shock resistance 30 g, vibration resistance 80 g.
- Dimensions 50 x 36 x 12 mm (L x H x W)
Snap-action switch S870 – Compact microswitch for a wide variety of safety applications
- Changeover contact, break contact, or make contact.
- Break contact with a positive opening.
- Self-cleaning contacts.
- Reliable switching of low currents.
- Shock resistance 70 g, vibration resistance 50 g.
- Protection class up to IP67 (contact area and connections).
- Dimensions 30 x 16 x 10.5 mm (L x H x W)
V4 snap-action switch S880 – Safety in the smallest space
Features:
- Changeover contact in miniature design; dimensions 20 x 9.3 x 6.6 mm (L x H x W).
- Break contact with positive opening.
- Self-cleaning contacts.
- Reliable switching of low currents.
- Shock resistance 50 g, vibration resistance 50 g.
- Protection class up to IP67 (contact area and connections)
K – Toggle switches
Features:
- Handle styles.
- Switching function.
- Switching elements
