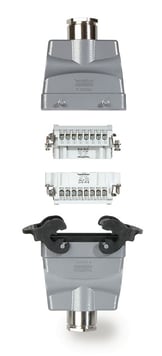

- In measurement and control technologies, as well as in mechanical and systems engineering, PROCON electrical connectors are utilized to provide power and control.
- Lighting and stage technology use PROCON electrical connectors.
- During system operation, they also function as interfaces for Computers or diagnostic equipment, transferring operating data or monitored information.
- Rectangular shape for the best possible use of space. Learn more
- 60A plug and connectors with black shell.
- Interchangeable with other manufacturers who conform to IEC standards.
- Electrical Interlock.
- Reliability. Learn more
Plugs and jacks for network cabling M12
- These include M12 D-code circular connectors for two-pair twisted-pair connections and M12 X-code circular connectors for four-pair twisted-pair connections.
- The D-code four-pin plug has a transmission rate of 100 Mbit/s.
- For higher data transfer rates, (e.g. Gigabit Ethernet), the X-code eight-pin M12 circular connectors can be used as they guarantee a data transfer rate up to the gigabit range.
- The robust M12 circular connectors have very high mechanical and electrical strength and, when plugged in, are dirt and moisture-resistant (IP67). This ensures safe and reliable contacting and error-free data transmission. Learn more
M12 Industrial Ethernet Connection cables, D- and X-coded
- Shielded M12 Industrial Ethernet connection cables for safe and industry-standard data transmission in automation and Fieldbus technology.
- It carries various types of cables for increased mechanical loads such as abrasion, bending, vibrations, drag chain operation, and torsion, in various performance classes Cat.5 (100 Mbit / s); Cat.6A (10GBit / s) with D- and X-coded connectors. Learn more
M12 sensor / actuator connection cables, A-coded
- M12 sensor/actuator connection cables with molded M12-A coded connectors meet the typical requirements of the automation industry.
- The sensor plugs are available in different designs as well as with various numbers of poles.
- The diverse range of sensor plugs is supplemented, among other things, with 360 ° shielded and unshielded variants.
- All connection cables are available in PUR and PVC cable quality. Learn more
PC board jacks and inserts M12
-
It is a circular connector with a metric thread, which was developed in several variants and codings for different protection types.
-
Fully shielded, EMC-compatible versions are available for applications in an electrically sensitive environment.
-
High mechanical strength and resistance to mechanical influences and vibrations.
-
The connectors of this product range with a metric 12 mm thread are used worldwide in the field of automation technology and sensor technology.
-
They are used for the transmission of data, signals, and field buses. Learn more
